Expanded Metal Mesh

Expanded Metal Mesh: Materials, and Diamond Pattern from Slit & Stretched Sheets

Expanded metal mesh is a versatile material, manufactured by slitting or cutting and then stretching metal sheets to create a robust yet lightweight structure characterized by a distinctive diamond-shaped pattern. Widely utilized in the construction industry for its strength, durability, and excellent ventilation, it finds applications in fences, walkways, facades, and protective screens. Available in various materials like steel, aluminum, and stainless steel, different types of expanded metal mesh are tailored to specific structural and aesthetic needs, varying in thickness, diamond pattern dimensions, and finish to suit diverse requirements.
Expanded Metal

Type

  • Standard (Raised) Expanded Metal Mesh: This type has raised strands that make the surface textured and slip-resistant, making it ideal for platforms, walkways, and steel fence,barriers.
  • Flattened Expanded Metal Mesh: Made by flattening standard mesh, it has a smooth surface and is commonly used for facades, decorative designs, and screens.
  • Micro Expanded Metal Mesh: With tiny openings, this type is mainly used in filters, screens, and precise applications.
  • Heavy-duty Expanded Metal Mesh: Made from thick metal sheets, this strong type is used in heavy-duty areas like industrial floors, fences, and machinery protection.

Expanded Metal Mesh – Flattened Diamond Pattern Specifications

  • Pattern Type: Flattened Diamond
  • Material: Galvanized Steel, or Stainless Steel
  • Opening Width (Short Way of Diamond – SWD): 1 inch (25.4 mm)
  • Opening Height (Long Way of Diamond – LWD): 0.29 inch (7.37 mm)
  • Strand Thickness: 14 gauge (0.072–0.075 inches / 1.83–1.91 mm)
  • Strand Width: 0.10–0.15 inches (2.54–3.81 mm, typical)
  • Overall Sheet Thickness: Approximately equal to strand thickness after flattening
  • Finish: Hot-Dip Galvanized for corrosion resistance,Not for SS
  • Standard Sheet Sizes: Typically available in 4′ × 8′, 5′ × 10′ or custom sizes
  • Applications: Ideal for protective screens, architectural facades, fencing, barriers, and decorative uses.

2′ x 2′ (610 mm x 610 mm) Expanded Metal Mesh Ceiling Panels

  • Material Options:
    • Aluminum alloy (lightweight, corrosion-resistant)
    • Painted steel (durable, customizable colors)
    • Galvanized steel (high corrosion resistance)
  • Pattern: Diamond (flattened or raised)
  • Opening Dimensions:
    • Short Way of Diamond (SWD): 0.5″ – 1″ (12.7 – 25.4 mm, typical)
    • Long Way of Diamond (LWD): 1″ – 2″ (25.4 – 50.8 mm, typical)
  • Strand Thickness:
    • Aluminum: 0.040″–0.063″ (1.0–1.6 mm)
    • Steel (Painted/Galvanized): 0.048″–0.075″ (1.2–1.9 mm, typical 14-18 gauge)
  • Strand Width: 0.100″–0.200″ (2.5–5.0 mm, typical)
  • Finish: Powder-coated paint (various colors), Anodized (for aluminum), or Hot-dip galvanized (for steel)
  • Edge Type:
    • Framed edges for suspended ceilings (T-grid compatible)
    • Unframed edges available for custom installations
  • Applications: Ceiling decoration, ventilation, acoustic control, architectural interiors, commercial spaces, offices, retail environments, and hospitality.

Expanded Metal Mesh, Steel, Rhomboid Pattern (15 × 45 mm)

  • Material: Steel grade S235 JRG2 (1.0038), mild structural steel
  • Mesh Type: Rhomboid (diamond) pattern, standard raised type
  • Short Way of Diamond (SWD): 15 mm Opening Dimensions
  • Long Way of Diamond (LWD): 45 mm Opening Dimensions
  • Strand Thickness: 3.0 – 4.0 mm
  • Strand Width: Approx. 3.5 – 5.0 mm
  • Sheet Size: 650 mm × 2900 mm
  • Surface Finish: raw steel, galvanized, or powder-coated (customizable)
  • Mesh Orientation: Standard orientation (long diamonds running parallel to sheet length)
  • Edge Condition: Standard unfinished edges; optional framed edges available upon request
  • Typical Applications: Protective barriers, industrial flooring, walkways, fencing, machinery guarding, security enclosures, architectural facades, ventilation covers

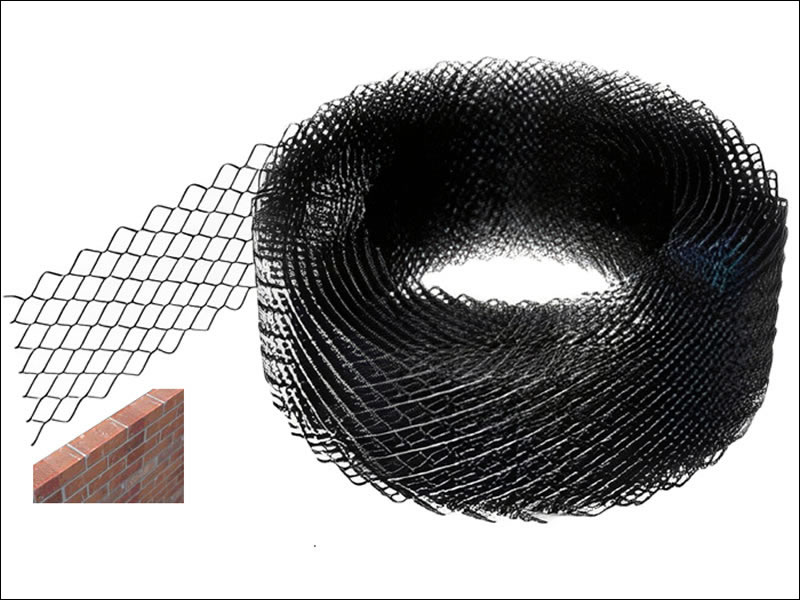

Expanded Metal Block Wall Reinforcement Coil (150 mm wide)

Expanded Metal Block Wall Reinforcement Coil

Expanded Metal Block Wall Reinforcement Coil Specifications:

  • Material: Galvanized Steel (GI) for corrosion resistance
  • Coil Length: 600 meters (continuous length coil)
  • Coil Width: 150 mm (6 inches)
  • Thickness: Approx. 0.5–0.8 mm (standard for wall reinforcement)
  • Short Way of Diamond (SWD): 10–15 mm Diamond Pattern Dimensions
  • Long Way of Diamond (LWD): 20–30 mm Diamond Pattern Dimensions
  • Strand Width: 1.5–2.5 mm
  • Finish: Hot-Dip Galvanized (GI) coating to meet corrosion-resistance standards
  • Application: Reinforcement for precast concrete block walls (6-inch thickness), improving structural integrity, crack control, and durability
  • Installation: Horizontal application between masonry courses
  • Custom widths, thicknesses, and coil lengths available upon request.

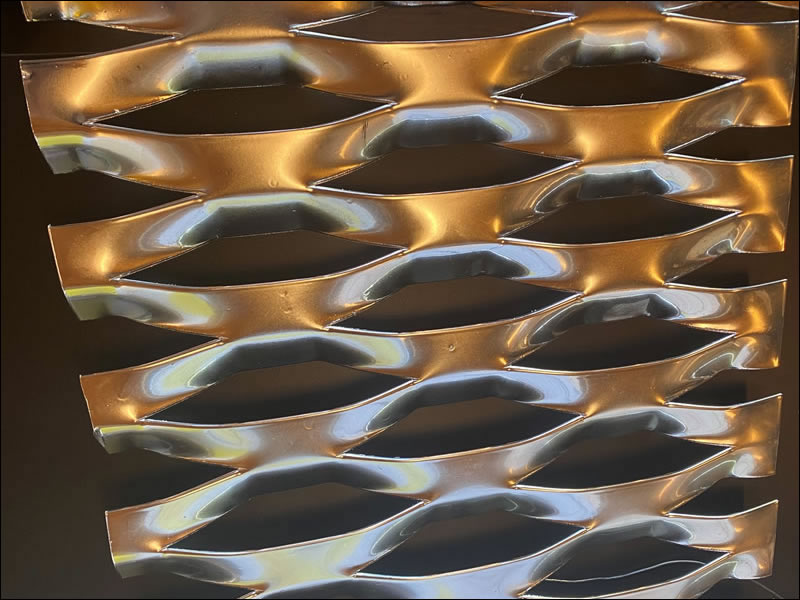

Expanded Metal Louver Mesh: Architectural Decorative Metal

Architectural Decorative Metal: Expanded Metal Louver Mesh
Architectural Expanded Metal Louver Mesh

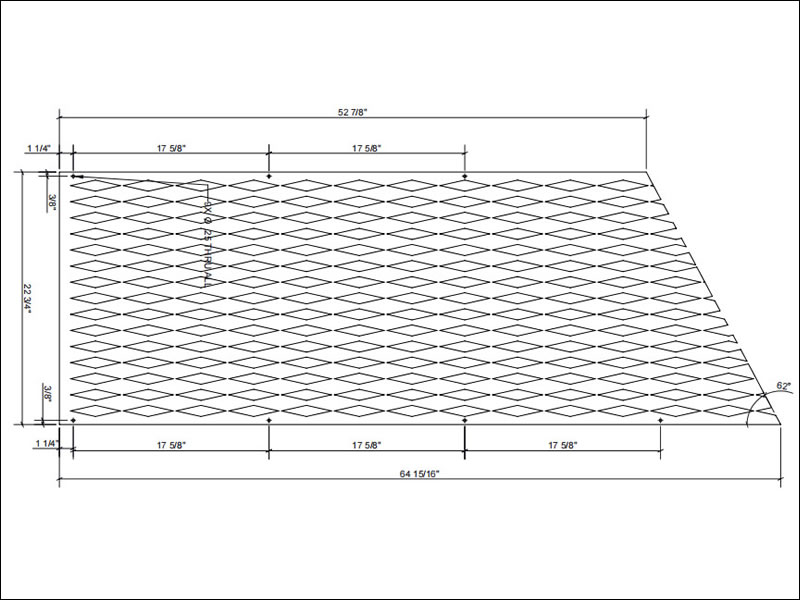

Expanded Metal Louver Specification:

  • Material: Galvanized steel or aluminum (optional painted finish available)
  • Louver Orientation: Horizontal
  • Long Way of Diamond (LWD – length of diamond opening): 6 inches (152.4 mm)
  • Short Way of Diamond (SWD – width of diamond opening): 2.125 inches (54 mm)
  • Long Way Opening (LWO – actual open space length): 4.5 inches (114.3 mm)
  • Short Way Opening (SWO – actual open space width): 0.5 inches (12.7 mm)
  • Strand Thickness: Typically 0.080″ – 0.125″ (2.0 – 3.2 mm) depending on material
  • Strand Width: Typically 0.100″ – 0.200″ (2.5 – 5.0 mm)
  • Finish Options: Hot-dip galvanized, powder-coated (various colors), anodized finish for aluminum
  • Panel Size: Customizable (commonly available sizes: 2′ x 4′, 4′ x 8′, or as specified by project needs)
  • Applications: Ideal for exterior building façades, ventilation louvers, sunshades, privacy screens, and architectural accents
  • Installation: Suitable for framed or frameless mounting, compatible with standard louver or façade systems
