Mallas Wire Mesh Manufacturing Co. is a global player in manufacturing of High Reliability Magnetics components and complete Wire & Stainless steel wire mesh.
We cater to various segments like Aerospace, Defense, Medical, Power and Heavy Duty Industrial.
- More

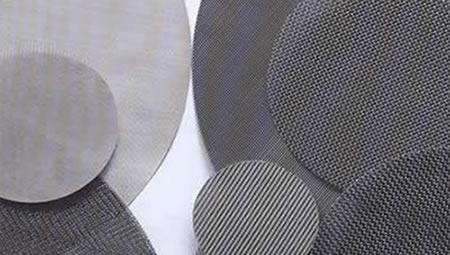

We shall be having regular bulk requirements of Twill Dutch Weave Micronic Stainless Steel Filter Cloth in either SS 304 or SS 316 Stainless Steel as per below detailed specification.
| Trade Name | 500x3500 (TDW) Twill Dutch Weave Filter Cloth | ||
| P/N: | 500x3500-0-001-0006-T-304-TDW | ||
| Wire Mesh Count | 500 | Tolerance | +/- 3% |
| C – C Pitch | 0.0020” (0.05080 mm) | Tolerance | +/- 0.0001” 0.0010” |
| Wire Diameter | 0.0254 mm | Tolerance | +/- 0.003 mm |
| Weft Mesh Count | 3500 | Tolerance | +/- 4% |
| C – C Pitch | 0.0003” (0.0073 mm) | Tolerance | +/- 0.0001” 0.0006” |
| Wire Diameter | 0.0152 mm | Tolerance | +/- 0.003 mm |
| Total Thickness | 0.0016” (0.0406 mm) | ||
| Material | T – 304 Stainless Steel | Standard | ASTM A555-79 |
| Weave Type | Twill Dutch Weave | Standard | ASTM E2016-06 |
| Nominal Retention | <1 Micron | Absolute Retention |
5 Micron <0.00004” 0.0002” |
| Standard Roll Widths | 48” or 60” | Width Tolerance |
+/- 1/16” (1.6 mm) |
We offer
316L Stainless Steel Wire Mesh - 0.080” Diameter Wire 0.17” Opening Width.
60” in the x direction x 72” in the y direction.
210 Sq. ft. of 316L SS wire mesh - 1/8” dia. wire, 1” square opening. 48” wide would work.
120 Sq. ft. of 316L SS wire cloth – 0.080” dia. wire, 0.17” opng width.
Can you made a wire cloth with mesh 9x9,5, dia 0.063" (1,6 mm). Material - SS 321?
4 leaf 1x1.5 m (3 m2) and 2 leaf 1x1 m (2 m2)
ASTM E2016, Woven Cloth
5/32 Width opening, .041 wire
Plain Square weave
Matl: Cres Steel, Type 302 or Type 316 PER ASTM A580
Material must be DFAR
2-1/2” W x 48”
Stainless steel wire mesh refers to the woven wire fabric made by weaving looms from first class stainless steel material in SUS/AISI 201, 202, 302, 304, 310, 310S, 316, 316L, etc. We provides information on wire materials applied for weaving, properties, and specification of most popular specifications.

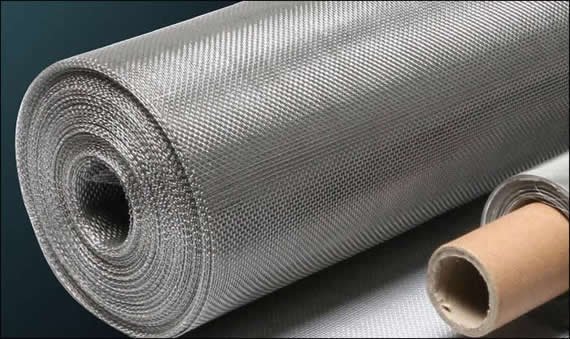

Reverse twill dutch weave and Twilled Weave Wire Cloth
Reverse dutch weave wire mesh
stainless steel wire cloth 304
152 x 24mesh
wire dia 0.27 x 0.40 width 133mm x lingth 10 mtr
72 x 15 mesh
wir dia 0.42 x 0.55 width 134mm x 10 mtr
For more details about our company please visit attached items which include wire mesh screens and perforated plate screens which are part of the Tender we are participating in.
Screen Cloth Scope
WOVEN WIRE CLOTH: ISO 9044
| S/N | 1 | 2 |
| MATERIAL DESCRIPTION | Aggregate plant Screen: Bottom Deck 1 | Aggregate plant Screen: Bottom Deck 2 |
| UNIT AREA | 1m x 2m= 2m² | 1m x 2m= 2m² |
| TOTAL SURFACE AREA (PAN SIZE) | 2.5m x 2= 5m² | 2.5m x 2= 5m² |
| NUMBER OF TRAYS | 2.5 | 2.5 |
| TYPE OF WEAVE | Square Apperture Double internal crimp | Square Apperture Double internal crimp |
| MOC | Carbon Steel | Carbon Steel |
| APERTURE WIDTH (w) MM | 5.8mm | 12mm |
| WIRE DIAMETER (d) | 2.5mm | 6mm |
| MESH SIZE (Number of apperture width per inch | 3 | 1.5 |
| ADVISED TAYLOR MESH SIZE | 3 | 3 |
| ADVISED PRODUCT THROUGHPUT | 0-5 mm | 0-10 mm |
| S/N | 3 | 4 |
| MATERIAL DESCRIPTION | Aggregate plant Screen: Middle Deck | Aggregate plant Screen: Top Deck |
| UNIT AREA | 1m x 2m= 2m² | 1m x 2m= 2m² |
| TOTAL SURFACE AREA (PAN SIZE) | 5m x 2= 10m² | 5m x 2= 10m² |
| NUMBER OF TRAYS | 5 | 5 |
| TYPE OF WEAVE | Square Apperture Double internal crimp | Square Apperture Double internal crimp |
| MOC | Carbon Steel | Carbon Steel |
| APERTURE WIDTH (w) MM | 16mm | 24.5mm |
| WIRE DIAMETER (d) | 3.8 mm | 6mm |
| MESH SIZE (Number of apperture width per inch | 1.25 | 1 |
| ADVISED TAYLOR MESH SIZE | 3 | 3 |
| ADVISED PRODUCT THROUGHPUT | 0-15 mm | 0-22 mm |
PERFORATED PLATE CLOTH: ISO 10630
| S/N | 1 | 2 |
| MATERIAL DESCRIPTION | Lime plant Screen: Bottom deck | Lime plant Screen: Top deck |
| UNIT AREA | 10m x 2m = 20m² | 10m x 2m = 20m² |
| TOTAL SURFACE AREA (PAN SIZE) | 10m x 10m= 100m² | 10m x 10m= 100m² |
| NUMBER OF TRAYS | 5 | 5 |
| TYPE OF PERFORATION | Square | Square |
| MOC | Carbon Steel | Carbon Steel |
| PLATE THICKNESS (t) | 6mm | 6mm |
| PLATE WIDTH (w) | 2M | 2M |
| SQUARE OPENING | 65mm x 65mm | 95mm x 95mm |
| ADVISED PRODUCT THROUGHPUT | 0-60mm | 0-90mm |
| Weave Description | ROLL SLIT WIDTH (Inches) | ROLL SIZE IN SQUARE FEET (Length 100 feet) |
| MEDIA010AW02375 - 10MIC ABS 200 x 1400 x .0028 / .0016 304 SS TWILL DUTCH WEAVE WIRE CLOTH |
1.969 | 16.408 |
| MEDIA075NW02375 - 200 MESH 40 x 200 x .0055 304 SS PLAIN DUTCH WIRE CLOTH |
2.344 | 19.533 |
| MEDIA075NW02375 - 200 MESH 40 x 200 x .0055 304 SS PLAIN DUTCH WIRE CLOTH |
1.594 | 13.283 |
| MEDIA075NW02375 - 200 MESH 40 x 200 x .0055 304 SS PLAIN DUTCH WIRE CLOTH |
7.969 | 66.408 |
| MEDIA141NW01625 -100 MESH 100 x 90 x .0045 304 SS WIRE CLOTH |
1.594 | 13.283 |
| MEDIA141NW01625 -100 MESH 100 x 90 x .0045 304 SS WIRE CLOTH |
4.440 | 37.000 |
| MEDIA141NW01625 -100 MESH 100 x 90 x .0045 304 SS WIRE CLOTH |
7.100 | 59.167 |
| MEDIA141NW01625 -100 MESH 100 x 90 x .0045 304 SS WIRE CLOTH |
7.969 | 66.408 |
| MEDIA141NW01625 -100 MESH 100 x 90 x .0045 304 SS WIRE CLOTH |
8.969 | 74.742 |
| MEDIA141NW01625 -100 MESH 100 x 90 x .0045 304 SS WIRE CLOTH |
10.969 | 91.408 |
| MEDIA141NW01625 -100 MESH 100 x 90 x .0045 304 SS WIRE CLOTH |
17.969 | 149.742 |
| MEDIA141NW01625 -100 MESH 100 x 90 x .0045 304 SS WIRE CLOTH |
2.344 | 19.533 |
| MEDIA141NW01625 -100 MESH 100 x 90 x .0045 304 SS WIRE CLOTH |
1.969 | 16.408 |
| MEDIA141NW01625 -100 MESH 100 x 90 x .0045 304 SS WIRE CLOTH |
4.969 | 41.408 |
| MEDIA280NW01625 - 60 MESH 60 x 50 x .0065 304 SS WIRE CLOTH |
3.969 | 33.075 |
| MEDIA280NW01625 - 60 MESH 60 x 50 x .0065 304 SS WIRE CLOTH |
5.969 | 49.742 |
| MEDIA560NW04000 - 30 MESH 30 x 30 x .0065 304 SS WIRE CLOTH |
3.969 | 33.075 |
| MEDIA560NW04000 - 30 MESH 30 x 30 x .0065 304 SS WIRE CLOTH |
11.969 | 99.742 |
